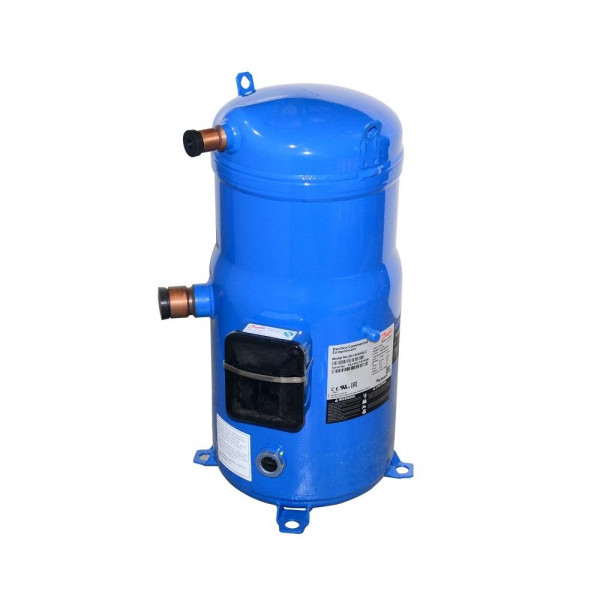

Danfoss DSH184A4ANAM 15 tons 184, 000 btu/h R410 R452B R454B, Scroll Compressor for Air Conditioning 380-415/3/50 460/3/60 (V/Ph/Hz) Discharge 7/8 in, Suction 1-3/8 in, ODF, POE Oil 120H1816 120H2300 Danfoss DSH184A4ALD hermetic scroll compressor designed for commercial air conditioning systems. Replaces SH184A4AL, SH180A4AL, 120H1817,120H1222, 120H1223, 120H1561, 120H1562, 120H0275 Electrical supply 380-415 V 3 phase 50 Hz or 460 V 3 phase 60 Hz for commercial HVAC installations Compatible with refrigerants R410A R452B and R454B for modern air conditioning systems Scroll compression technology with fixed speed capacity control and internal motor overload protection POE oil lubrication with about 3.6 L oil charge approx 122 oz and ODF connections with 1 3/8 in suction and 7/8 in discharge
Weight : 242.51 LBR Model : DSH184A4ANAM UPC-EAN : 5702428980791
G0315.SH1844
New
Data sheet
Product Feature
Compatible with refrigerants R410A R452B and R454B for modern air conditioning systems
Danfoss DSH184A4ALD hermetic scroll compressor designed for commercial air conditioning systems. Replaces SH184A4AL, SH180A4AL, 120H1817,120H1222, 120H1223, 120H1561, 120H1562, 120H0275
Electrical supply 380-415 V 3 phase 50 Hz or 460 V 3 phase 60 Hz for commercial HVAC installations
POE oil lubrication with about 3.6 L oil charge approx 122 oz and ODF connections with 1 3/8 in suction and 7/8 in discharge
Scroll compression technology with fixed speed capacity control and internal motor overload protection
Weight
242.51 LBR
Model
DSH184A4ANAM
UPC-EAN
5702428980791
Sales Unit
EA
Origin
China
US Tariff Code
8414.30.8080
Base Unit
EA
Segment
Air Conditioning
