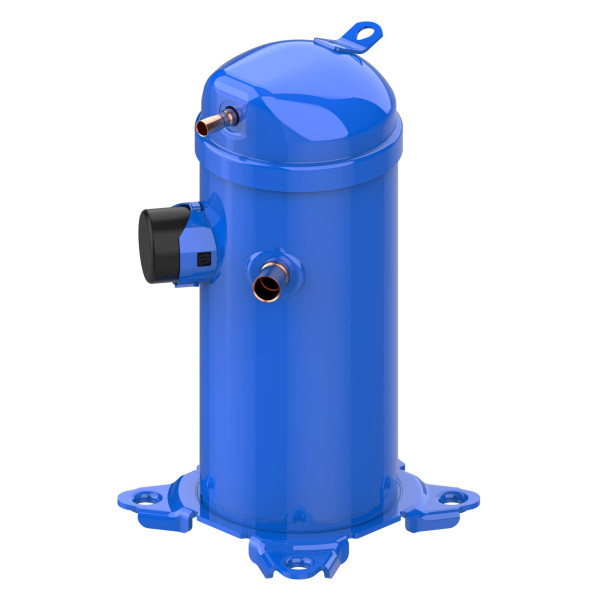

Danfoss HRH056U4LP6 4.7 ton 56,000 btu/h R410A Scroll Compressor for Air conditioning 380-415/3/50, 460/3/60 V/Ph/Hz Discharge 1/2 in, Suction 7/8 in, ODF, PVE Oil 121L1378, 121L1381 Replace 120U1386 Danfoss HRH056U4LP6, 121L1381 hermetic scroll compressor designed for air conditioning applications with fixed speed capacity control Compatible with refrigerant R410A for HVAC air conditioning systems Electrical supply 380-415 V 3 phase 50 Hz or 460 V 3 phase 60 Hz for commercial HVAC installations Includes internal overload motor protection and PVE oil lubrication with about 1.57 L oil charge approx 53 oz Brazed connections with 7/8 in suction line and 1/2 in discharge line for air conditioning system installation
Weight : 72.76 LBR Model : HRH056U4LP6 UPC-EAN : 5702428204897
G0315.056U44
New

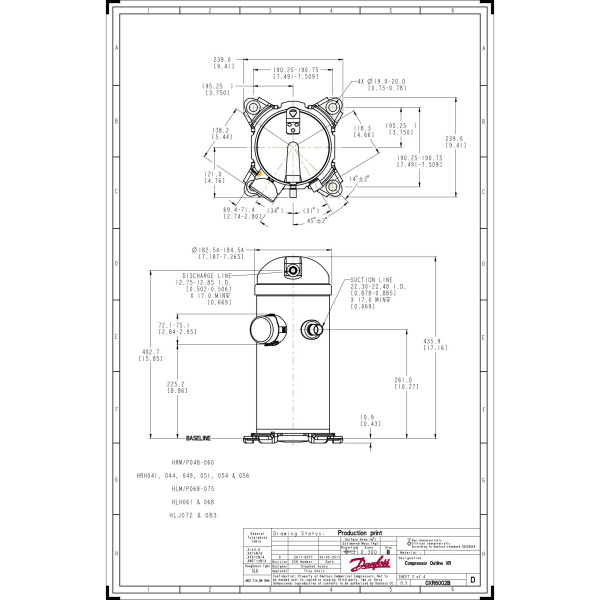

Data sheet
Product Feature
Brazed connections with 7/8 in suction line and 1/2 in discharge line for air conditioning system installation
Compatible with refrigerant R410A for HVAC air conditioning systems
Danfoss HRH056U4LP6, 121L1381 hermetic scroll compressor designed for air conditioning applications with fixed speed capacity control
Electrical supply 380-415 V 3 phase 50 Hz or 460 V 3 phase 60 Hz for commercial HVAC installations
Includes internal overload motor protection and PVE oil lubrication with about 1.57 L oil charge approx 53 oz
Weight
72.76 LBR
Model
HRH056U4LP6
UPC-EAN
5702428204897
Sales Unit
EA
Origin
USA
US Tariff Code
8414.30.8060
Base Unit
EA
Hz
60
Power Supply (V)
440 V
Segment
Air Conditioning
