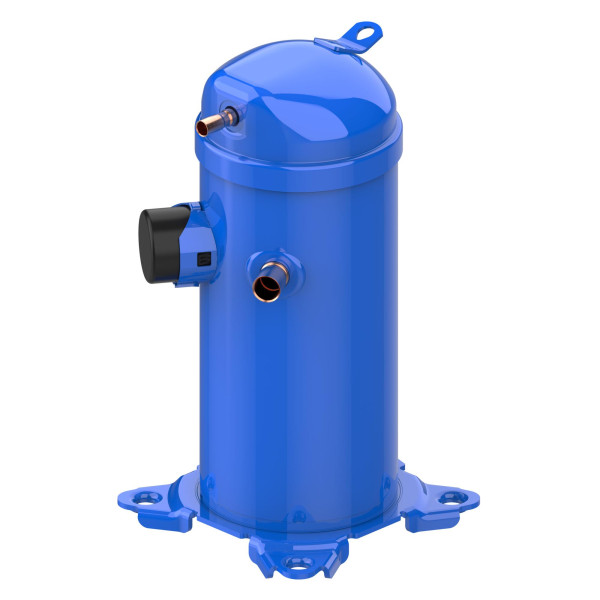

Danfoss HRP054T1LP6 4.5 tons 54,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/1/60 (V/Ph/Hz) Discharge 1/2 in, Suction 7/8 in, ODF, PVE Oil 121L3349 Replaces: HRM054U1LP6, 120U3312, 121L3349

Size Guide

Tags AC Compressor Condenser Compressor Aircon Compressor Oudoor Unit compressor

Danfoss HRP054T1LP6 4.5 tons 54,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/1/60 (V/Ph/Hz) Discharge 1/2 in, Suction 7/8 in, ODF, PVE Oil 121L3349 Replaces: HRM054U1LP6, 120U3312, 121L3349
Use: Scroll Compressor Replacement for Air Conditioning Units
Electrical Components: Run Capacitor 70mfd 370VAC, Start Capacitor 161-193 mfd 250VAC, Start Relay RVA 2AB3D
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 1.57L PVE Oil Charge, Internal overload protector

Weight : 99.23 LBR
Model : HRP054U1LP6
UPC-EAN : 5702428969246

Scroll Compressor HRP054T1LP6 – Danfoss 121L3349

The Danfoss HRP054T1LP6 is a heavy-duty scroll compressor built for R407C air conditioning systems. Operating on a 208-230V/1/60Hz single-phase supply, this hermetic unit is designed for demanding residential and light commercial applications. With approximately 54,000 BTU/h cooling capacity, it offers powerful performance, internal motor protection, and high oil volume for superior system reliability.

Key Features

Refrigerant: R407C
Cooling Capacity: Approx. 54,000 BTU/h (4.5 Tons)
Power Supply: 208-230V, 1 Phase, 60Hz
Oil Type: PVE, 1.57 L charge (160HV)
Compressor Type: Hermetic Scroll – Fixed Speed
Discharge Connection: 1/2 inch ODF
Suction Connection: 7/8 inch ODF
Motor Protection: Internal overload protector
Certifications: UL, CE, UKCA compliant
Max Pressure: High side 31.1 bar, Low side 26.2 bar

Applications

Ideal for residential and commercial A/C units requiring high-capacity cooling with R407C. Commonly used in large split systems, rooftop units, and packaged equipment.

Competitor Equivalent Part Numbers

Copeland ZR54K3E-PFV
Emerson ZR54K5E-PFV
Tecumseh AG166UT-038-J7

Frequently Asked Questions

What is the cooling capacity of the HRP054T1LP6?
Approximately 54,000 BTU/h or 4.5 tons with R407C under typical conditions.
What oil is used?
Precharged with 1.57 L of PVE oil (160HV).
What are the power requirements?
208-230V, 1 Phase, 60 Hz.
When should I replace this compressor?
Replace when signs of internal failure, locked rotor, loss of compression, or winding faults appear. Always verify oil and refrigerant compatibility.

Reference G0315.054U1

Condition New

Data sheet

Product Feature: Aditional Details: 1.57L PVE Oil Charge, Internal overload protector
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
Electrical Components: Run Capacitor 70mfd 370VAC, Start Capacitor 161-193 mfd 250VAC, Start Relay RVA 2AB3D
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Use: Scroll Compressor Replacement for Air Conditioning Units
Weight: 99.23 LBR
Model: HRP054U1LP6
UPC-EAN: 5702428969246
Sales Unit: EA
Origin: USA
US Tariff Code: 8414.30.8060
Base Unit: EA
