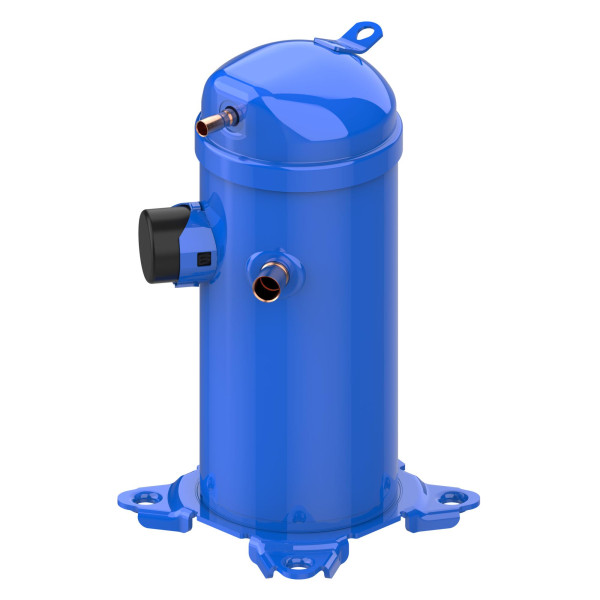

Danfoss HRP038T1LP6 3.2 tons 38,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/1/60 (V/Ph/Hz) Discharge 1/2 in, Suction 3/4 in, ODF, PVE Oil 121L3353 Replaces: 120U3197, HRM038U1LP6 , ZR34K-PFV , ZR36K-PFV Use: Scroll Compressor Replacement for Air Conditioning Units Electrical Components: Run Capacitor 55mfd 370VAC, Start Capacitor 88-108 mfd 330VAC, Start Relay RVA 2ABKO Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company Aditional Details: 1.06L PVE Oil Charge, Internal overload protector
Weight : 68.24 LBR Model : HRP038T1LP6 UPC-EAN : 5702428208338
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Use: Scroll Compressor Replacement for Air Conditioning Units
Weight
68.24 LBR
Model
HRP038T1LP6
UPC-EAN
5702428208338
Sales Unit
EA
Origin
USA
US Tariff Code
8414.30.8060
Base Unit
EA
