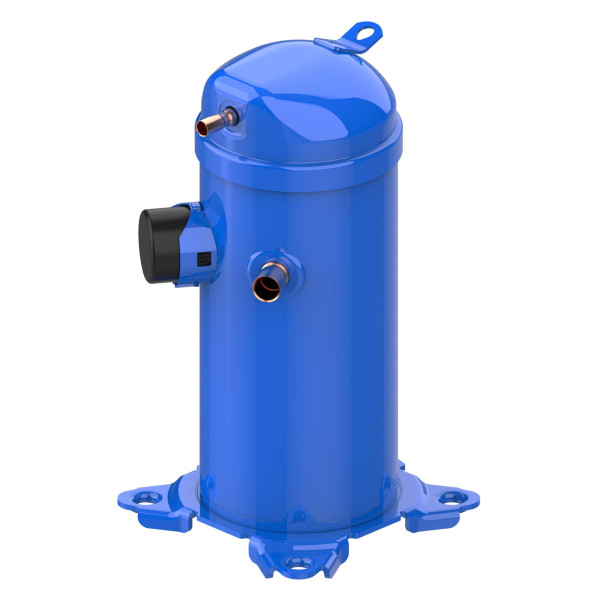

Danfoss HRP042T1LP6 3.5 tons 42,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/1/60 (V/Ph/Hz) Discharge 1/2 in, Suction 3/4 in, ODF, PVE Oil 121L3094 Replaces HRM040U1LP6, HRM042U1LP6

Size Guide

Tags AC Compressor Condenser Compressor Aircon Compressor Oudoor Unit compressor

Danfoss HRP042T1LP6 3.5 tons 42,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/1/60 (V/Ph/Hz) Discharge 1/2 in, Suction 3/4 in, ODF, PVE Oil 121L3094 Replaces HRM040U1LP6, HRM042U1LP6
Use: Scroll Compressor Replacement for Air Conditioning Units
Electrical Components: Run Capacitor 60mfd 370VAC, Start Capacitor 88-108 mfd 250VAC, Start Relay RVA 2ABKO
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 1.06L PVE Oil Charge, Internal overload protector

Weight : 68.24 LBR
Model : HRP042T1LP6
UPC-EAN : 5702428208253

Scroll Compressor HRP042T1LP6 – Danfoss 121L3094

The Danfoss HRP042T1LP6 is a robust scroll compressor engineered for R407C air conditioning systems. Operating on 208-230V single-phase power, this hermetic unit is designed for light commercial and residential cooling applications around 42,000 BTU/h. With high energy efficiency, internal motor protection, and PVE oil compatibility, the HRP042T1LP6 ensures reliable operation and long service life.

Key Features

Refrigerant: R407C
Cooling Capacity: Approx. 42,000 BTU/h (3.5 Tons)
Power Supply: 208-230V, 1 Phase, 60Hz
Oil Type: PVE, 1.06 L charge (320HV)
Compressor Type: Hermetic Scroll – Fixed Speed
Discharge Connection: 1/2 inch ODF
Suction Connection: 3/4 inch ODF
Motor Protection: Internal overload protector
Certifications: UL, CE, UKCA compliant
Max Pressure: High side 31.1 bar, Low side 26.2 bar

Applications

Recommended for residential and commercial HVAC systems using R407C. Ideal for rooftop units, ducted split systems, and compact A/C packages.

Competitor Equivalent Part Numbers

Copeland ZR42K3E-PFV
Emerson ZR42K5E-PFV
Tecumseh AG160UT-038-J7

Frequently Asked Questions

What is the cooling capacity of the HRP042T1LP6?
This unit delivers approx. 42,000 BTU/h or 3.5 tons of cooling capacity under standard conditions with R407C.
What oil does it use?
It is factory-filled with 1.06 L of PVE oil (320HV).
What are the electrical requirements?
It operates at 208-230V, single-phase, 60 Hz.
When should this compressor be replaced?
Replace if internal motor failure, locked rotor, low compression, or refrigerant contamination is present. Always match oil and refrigerant before installation.

Reference G0315.042U1

Condition New

Data sheet

Product Feature: Aditional Details: 1.06L PVE Oil Charge, Internal overload protector
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Electrical Components: Run Capacitor 60mfd 370VAC, Start Capacitor 88-108 mfd 250VAC, Start Relay RVA 2ABKO
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Use: Scroll Compressor Replacement for Air Conditioning Units
Weight: 68.24 LBR
Model: HRP042T1LP6
UPC-EAN: 5702428208253
Sales Unit: EA
Origin: USA
US Tariff Code: 8414.30.8060
Base Unit: EA
