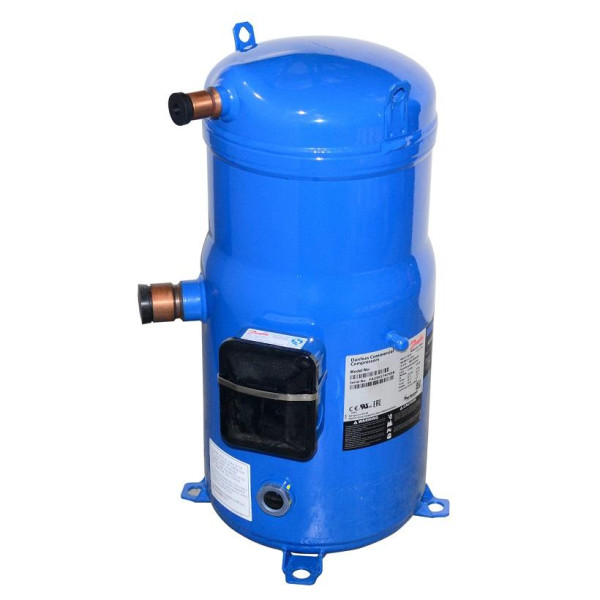

Danfoss SM115S4QC 9.5 tons 115, 000 btu/h R22 Scroll Compressor for Air Conditioning 380-415/3/50, 460/3/60 (V/Ph/Hz) Discharge 7/8 in, Suction 1-3/8 in, ODF, Mineral Oil SM115-4QAI Danfoss SM115S4QC hermetic scroll compressor designed for commercial air conditioning systems. Replaces SM115-4RI, SM115S4RC. Competitor Part Number CSHA-093K-0,ZR108KC-TFD, ZR11M3-TWD Electrical supply 380-415 V 3 phase 50 Hz or 460 V 3 phase 60 Hz for HVAC installations Compatible with refrigerant R22 for air conditioning service and replacement applications Nominal cooling capacity about 115000 BTU per hour approx 9.5 to 10 tons depending on operating conditions ODF brazed connections with 1 3/8 in suction and 7/8 in discharge and mineral oil lubrication
Weight : 200 LBR Model : SM115S4QC UPC-EAN : 5702428839426
G0315.SM1154
New
Data sheet
Product Feature
Compatible with refrigerant R22 for air conditioning service and replacement applications
Danfoss SM115S4QC hermetic scroll compressor designed for commercial air conditioning systems. Replaces SM115-4RI, SM115S4RC. Competitor Part Number CSHA-093K-0,ZR108KC-TFD, ZR11M3-TWD
Electrical supply 380-415 V 3 phase 50 Hz or 460 V 3 phase 60 Hz for HVAC installations
Nominal cooling capacity about 115000 BTU per hour approx 9.5 to 10 tons depending on operating conditions
ODF brazed connections with 1 3/8 in suction and 7/8 in discharge and mineral oil lubrication
Weight
200 LBR
Model
SM115S4QC
UPC-EAN
5702428839426
Sales Unit
EA
Origin
China
US Tariff Code
8414.30.8070
Base Unit
EA
Segment
Air Conditioning
