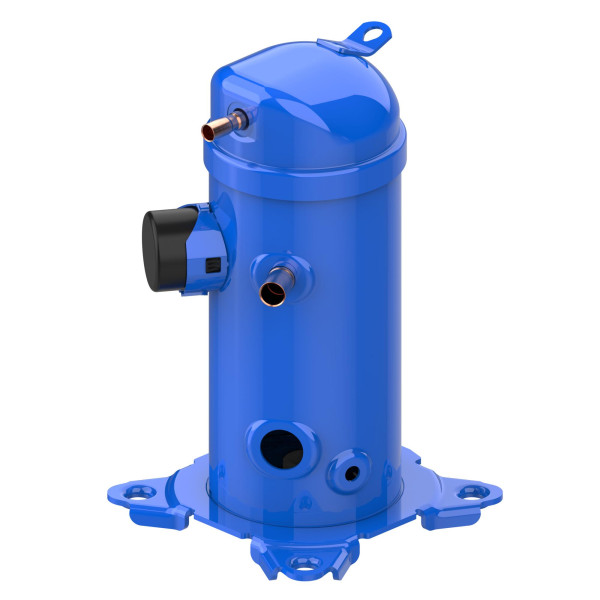

Danfoss HRP025T1LP6 2 tons 25,000 Btu/h R22,R407C Scroll Compressor for Air conditioning 208-230/1/60 V/Ph/Hz Discharge 1/2 in, Suction 3/4 in, ODF, PVE Oil 121L3086 Replaces HRM025T1LP6, 120U2780 Use: Scroll Compressor Replacement for Air Conditioning Units. Fits ZR25K-PFV Electrical Components: Run Capacitor 45mfd 370VAC, Start Capacitor 145-175 mfd 330 VAC, Start Relay RVA 2ACKO. Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company Aditional Details: 1.06L PVE Oil Charge, Internal overload protector
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations on selected models
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Weight
80 LBR
Model
HRP025T1LP6
UPC-EAN
687152010622
Sales Unit
EA
Origin
USA
US Tariff Code
8414.30.8060
Base Unit
EA
Segment
Air Conditioning
