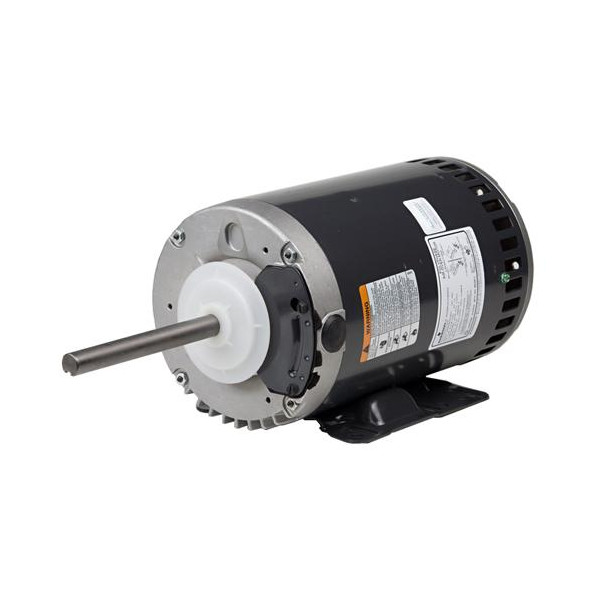

US Motors 3913 3/4 HP 1140 rpm, 208-230/460 V, 60 Hz, 1 shaft, TEAO Enclosure, 1 speed, 6.3 diameter, Reversible Rotation, Frame 56Y, P063TDA3813015B

US Motors 3913 3/4 HP 1140 rpm, 208-230/460 V, 60 Hz, 1 shaft, TEAO Enclosure, 1 speed, 6.3 diameter, Reversible Rotation, Frame 56Y, P063TDA3813015B

Size Guide

US Motors 3913 3/4 HP 1140 rpm, 208-230/460 V, 60 Hz, 1 shaft, TEAO Enclosure, 1 speed, 6.3 diameter, Reversible Rotation, Frame 56Y, P063TDA3813015B
Use: Designed to meet manufacturers requirements for condenser cooling fans in commercial air conditioning applications where 3 phase power is required
Automatic Reset Thermal Overload Protector. Continuous Duty, Air Over
Double-Sealed Ball Bearings. Dual Voltage
Class B Insulation. 140 F (60 C) Ambient Rated
Shaft-up Mounting

Weight : 12.0 LBR
Model : P063TDA3813015B
UPC-EAN : 786382084493

Reference G3913

Condition New

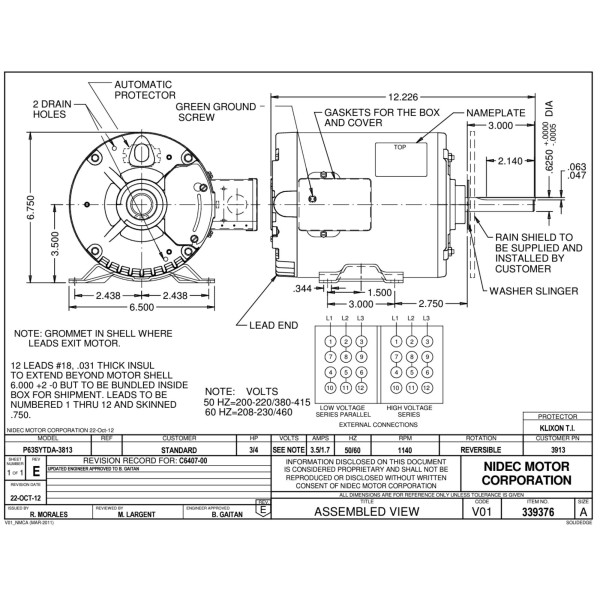

Data sheet

Product Feature: Automatic Reset Thermal Overload Protector. Continuous Duty, Air Over
Class B Insulation. 140 F (60 C) Ambient Rated
Double-Sealed Ball Bearings. Dual Voltage
Shaft-up Mounting
Use: Designed to meet manufacturers requirements for condenser cooling fans in commercial air conditioning applications where 3 phase power is required
Weight: 12.0 LBR
Model: P063TDA3813015B
UPC-EAN: 786382084493
Sales Unit: EA
Origin: Mexico
US Tariff Code: 8501.20.6000
Base Unit: EA

Download

Data sheet

Download (87.06KB)

Data sheet 2

Download (61.47KB)
