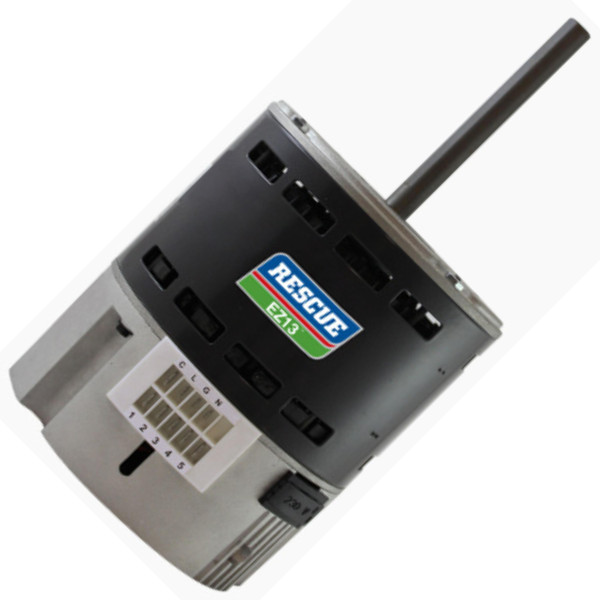

US Motors 5642 Rescue EZ13 ECM 3/4 hp 1075 rpm, 10 poles, 1 shaft, OPA Enclosure, Var speed, 5.6 diameter, Reversible, 115/208-230 V, 60 hz, 1 ph, M055TZF0093015B 5 Pin X13 replaces 6640TS, 6641TS Universal Compatibility: Direct replacement for Selectech, X13, and EnduraPro motors, making it suitable for a wide range of HVAC systems. Dual Voltage and Easy Installation: Supports both 115V and 208-230V (and 460V models available), and uses existing equipment connections for quick, hassle-free installation. No Programming Needed: The motor automatically senses rotation direction (with a reversing plug for 460V), requiring no programming or setup High Efficiency and Quiet Operation: Designed for energy efficiency, with smooth, quiet start-up and speed changes, plus overall quiet operation Durable and Protected: Features a potted electric module for moisture protection, 6000V surge protection, and ball bearings for long-lasting performance.
Weight : 15 LBR Model : M055TZF0093015B
G5642
New
Data sheet
Product Feature
Dual Voltage and Easy Installation: Supports both 115V and 208-230V (and 460V models available), and uses existing equipment connections for quick, hassle-free installation.
Durable and Protected: Features a potted electric module for moisture protection, 6000V surge protection, and ball bearings for long-lasting performance.
High Efficiency and Quiet Operation: Designed for energy efficiency, with smooth, quiet start-up and speed changes, plus overall quiet operation
No Programming Needed: The motor automatically senses rotation direction (with a reversing plug for 460V), requiring no programming or setup
Universal Compatibility: Direct replacement for Selectech, X13, and EnduraPro motors, making it suitable for a wide range of HVAC systems.
Weight
15 LBR
Model
M055TZF0093015B
UPC-EAN
687152010622
Sales Unit
EA
Origin
Mexico
US Tariff Code
8501.20.6000
Base Unit
EA
