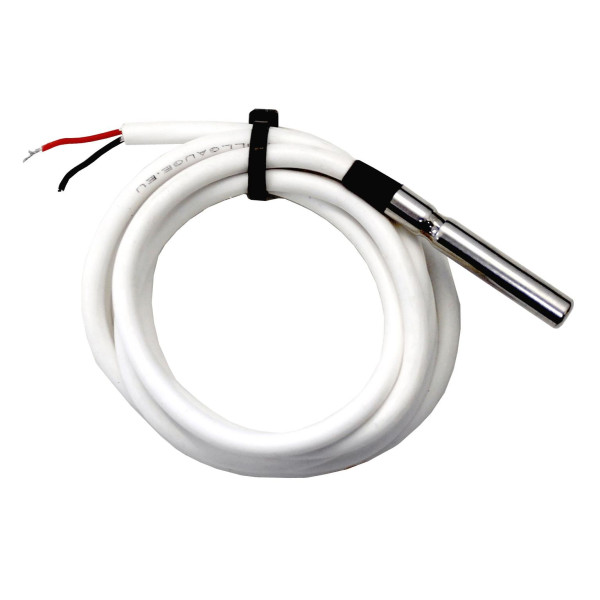

Full Gauge SB-59 NTC Temperature Sensor 8.2 ft (2.5 m), NTC Sensor with silicone cable and covered with stainless steel shell. Operating Temp -58 to 392 F (-50 to 200 C)

Full Gauge SB-59 NTC Temperature Sensor 8.2 ft (2.5 m), NTC Sensor with silicone cable and covered with stainless steel shell. Operating Temp -58 to 392 F (-50 to 200 C)

Size Guide

Full Gauge SB-59 NTC Temperature Sensor 8.2 ft (2.5 m), NTC Sensor with silicone cable and covered with stainless steel shell. Operating Temp -58 to 392 F (-50 to 200 C)
NTC Resistance of 10K Ohms at 77 F (25 C)
Temperature Range: -58 to 392 F (-50 to 200 C)
PFS Precision Full Scale: 1 percent FS
Response Timer: Less than 10 seconds. Test in water according to IEC 751. Time to reach 63.2 per cent of the temp step
Tensile Test: Pmax 4 kgf

Weight : 0.3 LBR
Volume : 0.01 FTQ
Model : SB59

Reference GSB59

Condition New

Data sheet

Product Feature: NTC Resistance of 10K Ohms at 77 F (25 C)
PFS Precision Full Scale: 1 percent FS
Response Timer: Less than 10 seconds. Test in water according to IEC 751. Time to reach 63.2 per cent of the temp step
Response Timer: Less than 10 seconds. Test in water according to IEC 751. Time to reach 63.2 per cent of the temp step
Tensile Test: Pmax 4 kgf
Weight: 0.3 LBR
Volume: 0.01 FTQ
Model: SB59
UPC-EAN: 687152010622
Sales Unit: EA
Origin: Brazil
US Tariff Code: 8418.99.8060
Base Unit: EA
Dimensions: 4 x 0.8 x 2.8

Download

Data sheet

Download (299.51KB)
