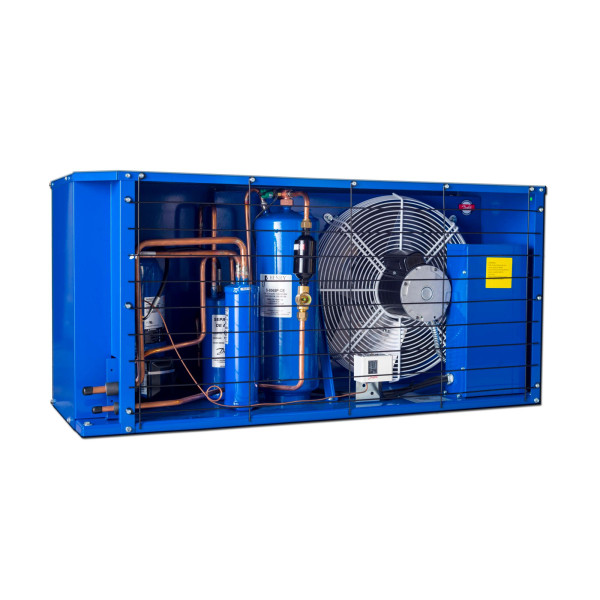

Danfoss OP-HJZ050D40N Condensing Unit Microchannel Coil 4.5HP MBP 230V/1Ph/60Hz R134a,R404A,R448A,R449A,R452A,R513A POE Oil 1 Fan Enclosure with Reciprocating Compressor MTZ050-1 115N0348 This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload This model includes: Receiver, Filter Drier, Sight Glass, Low pressure Switch KP1, High Pressure Cartdrige, Oil Separator, Suction Accumulator, Cranckase Heater, Rotolock Valves Rated Capacity for Medium Back Pressure R404A 29,255 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 7/8 Suction and 1/2 Liquid Side. 1 Axial Fan 17-3/4 in
Rated Capacity for Medium Back Pressure R404A 29,255 BTU/h at evaportaing Temperature 14F and Ambient Temperature 95F with Superheat 18k and Subcooling 3K. Check Chart for more Information
The D40 Models Include an Outdoor Housing. Microchannel Aluminum Condenser Coil. Pipe Connection Sizes 7/8 Suction and 1/2 Liquid Side. 1 Axial Fan 17-3/4 in
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
This Condensing units with micro-channel condensers use up to 30% less refrigerant charge than those equipped with fin and tube type condensers, thus streamlining the workload
Weight
295.42 LBR
Volume
11.74 FTQ
Model
HJZ050D40N
UPC-EAN
687152010622
Sales Unit
EA
Origin
Mexico
US Tariff Code
8418.99.8015
Base Unit
EA
Dimensions
27.09 x 45.28 x 16.54
