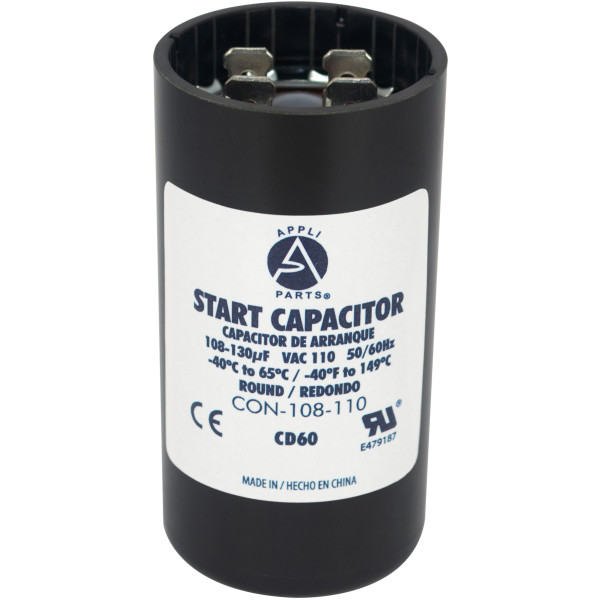

Appli Parts CON-108-110 Motor Start Capacitor 108-130 MFD uF, 110-125 VAC. Universal for Electric Motor Applications, 1.44 in Wide, 2.75 in Height Universal Compatibility: Replaces any brand with the same capacitance capacity and voltage. Will work for 110-125 VAC with 1/4 in Male Quick-connect. Replaces 2Mdr1 CAP-108-110 Certified: A CD60 type capacitor is a single phase motor start capacitor, electrolytic, non polarized, high capacitance, and intermittent duty type. Designed to provide high starting torque for a few seconds when the motor starts. High quality construction: Manufactured under UL certification E479187, CD60 type, PCB free for safe and reliable use. Built with durable materials for greater strength and long service life. Technical Specs: Tolerance Is +/- 20% Of Capacity, Working Temperature Environment From -40F to +149F, 50/60 Hz. Dimensions 1.44 in Wide, 2.75 in Height Applications: Ideal for motor start circuits in water pumps, pool pumps, table saws, compressors, and other general applications. Verify that dimensions and specifications match the product being replaced.
Weight : 0.6 LBR Model : CON-108-110 UPC-EAN : 814245023171
G0320.108
New
Data sheet
Product Feature
Applications: Ideal for motor start circuits in water pumps, pool pumps, table saws, compressors, and other general applications. Verify that dimensions and specifications match the product being replaced.
Certified: A CD60 type capacitor is a single phase motor start capacitor, electrolytic, non polarized, high capacitance, and intermittent duty type. Designed to provide high starting torque for a few seconds when the motor starts.

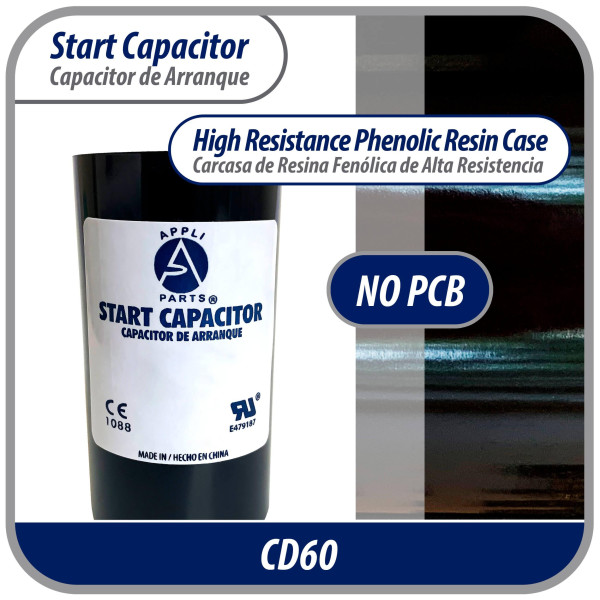

High quality construction: Manufactured under UL certification E479187, CD60 type, PCB free for safe and reliable use. Built with durable materials for greater strength and long service life.

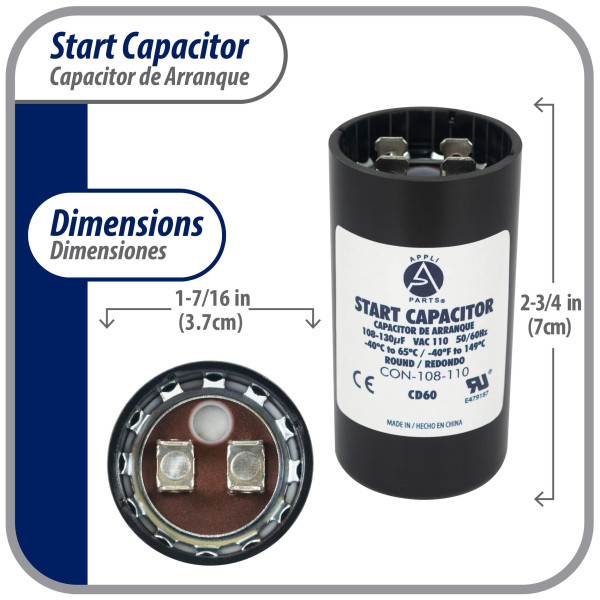

Technical Specs: Tolerance Is +/- 20% Of Capacity, Working Temperature Environment From -40F to +149F, 50/60 Hz. Dimensions 1.44 in Wide, 2.75 in Height

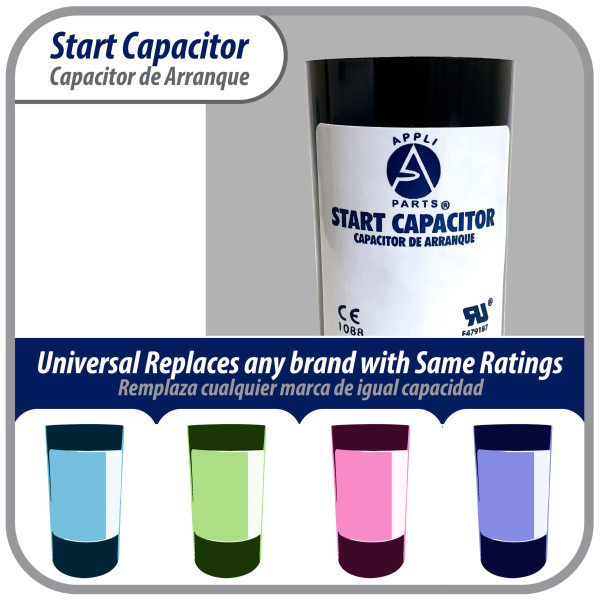

Universal Compatibility: Replaces any brand with the same capacitance capacity and voltage. Will work for 110-125 VAC with 1/4 in Male Quick-connect. Replaces 2Mdr1 CAP-108-110
Weight
0.6 LBR
Model
CON-108-110
UPC-EAN
814245023171
Sales Unit
EA
Origin
China
US Tariff Code
8532.25.0010
Base Unit
EA
Dimensions
5.0 x 5.0 x 5.0
Capacitance
108-130 mfd
VAC
110-125 VAC
