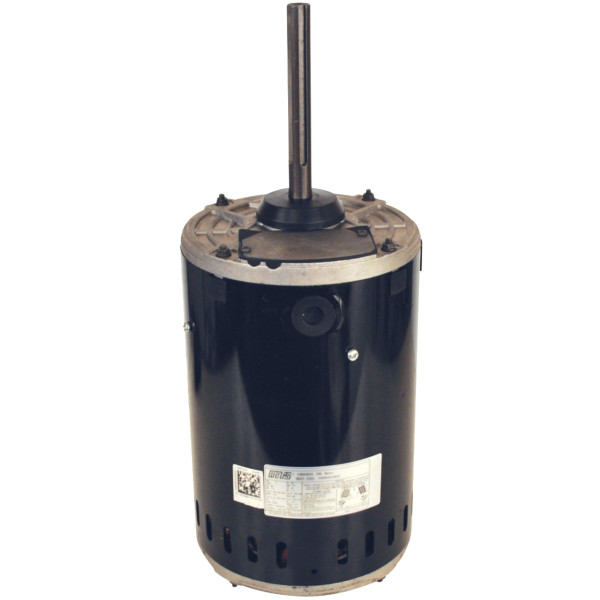

MARS 10503 Motor commercial condenser fan Belly Band 1-1/2HP 208-230/460V 50/60Hz 1140rpm 56Y Open Air Continuous duty Use: Commercial condenser fan motors may be installed outdoors. These motors need to be mounted within the airflow of the fan for proper cooling Features: 70C ambient, VFD compatible, Water Slinger on shaft, Flat and keyway on shaft, Belly Band Fits: Use on Trane, Carrier, Climatrol and York units, 5 tons and larger Specs: Class H1 insulation, 3 phase 50/60Hz, Continuous duty, air over, Automatic thermal overload protected, cULus Model : 10503
G10503
New
Data sheet
Product Feature
Features: 70C ambient, VFD compatible, Water Slinger on shaft, Flat and keyway on shaft, Belly Band
Features: 70C ambient, VFD compatible, Water Slinger on shaft, Flat and keyway on shaft, Belly Band
Fits: Use on Trane, Carrier, Climatrol and York units, 5 tons and larger
Specs: Class H1 insulation, 3 phase 50/60Hz, Continuous duty, air over, Automatic thermal overload protected, cULus
Use: Commercial condenser fan motors may be installed outdoors. These motors need to be mounted within the airflow of the fan for proper cooling
Model
10503
UPC-EAN
687152010622
Sales Unit
EA
Origin
China
US Tariff Code
8501.20.6000
Base Unit
EA
